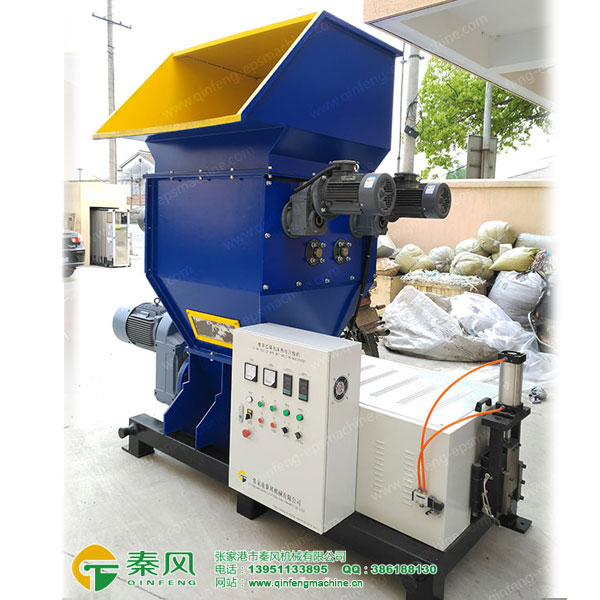

Model泡沫包裝熱熔機型號 | CF-HM-200 |
Screw diameter螺桿直徑 | φ197 mm |
Screw distance螺桿長度 | 150 mm |
Screw speed螺桿速度 | 110 r/min |
Capacity產量 | 100~120Kg/h |
Screen hole diameter濾網孔徑 | 40mm |
Extrusion center height擠出中心高度 | 326 mm |
Motor power電機功率 | 15KW |
Heating power加熱功率 | 3 zones total 10kw |
Crusher motor power破碎電機功率 | 2.2kwx2 |
Crusher blades quatity破碎刀片數量 | Twin screw 9sets+10sets |
Crusher rotation speed破碎轉速 | 100r/m |
Size L×W×H機器尺寸 | 2800×1580×1950 |
Weight 重量 | 1400 Kg |
